Corner Radiator Valves

Frequently Asked Questions About Corner Radiator Valves

What is a corner radiator valve and when do I need one?

A corner radiator valve, also known as a corner angle valve, is a specialist valve designed for tight spaces where standard straight or angled valves are impractical to fit, redirecting the hot water flow at a 90-degree angle at the point where the inlet and outlet pipes connect to the radiator. They are the best choice for compact bathrooms, cloakrooms, and kitchens where wall space is limited and a neater, more discreet installation is needed to keep the finished look clean and unobtrusive.

What is the difference between a corner valve and an angled valve?

An angled radiator valve is suited to most standard wall pipework configurations and sits close to the wall in a compact position, while a corner valve is specifically designed for installations where even an angled valve would protrude too far or sit awkwardly due to the proximity of walls, furniture, or pipework configuration. If your radiator sits very close to a corner or wall junction, a corner valve is the more practical and visually tidy solution.

Are corner radiator valves suitable for towel rails as well as radiators?

Yes, all corner radiator valves in our range are designed and tested for use on both towel rails and radiators, manufactured to UK specifications with a standard 15mm pipe connection and half-inch BSP fittings to suit most domestic central heating systems. They are tested and certified to BS EN 215 standards, ensuring reliable and compliant performance across all compatible installations.

Do corner radiator valves come with a lockshield?

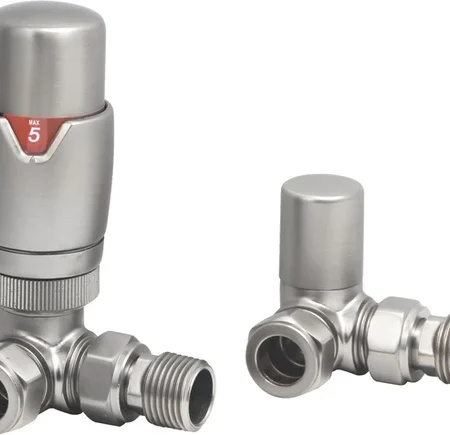

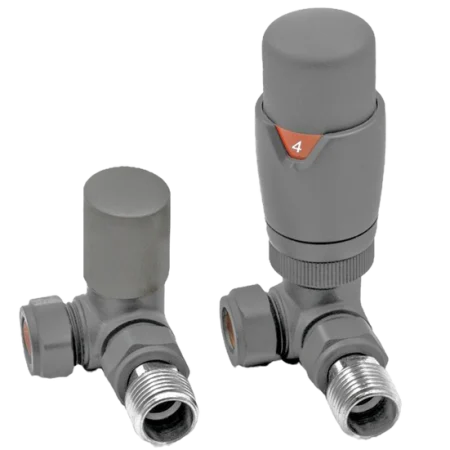

Yes, corner radiator valves in our range are sold as a pair including the lockshield valve, which is fitted on the opposite side of the radiator to balance the hot water flow across your heating system and ensure even heat distribution throughout the property. Having both valves from the same range in a matching finish ensures the installation looks cohesive and considered on the finished radiator.

What finishes are corner radiator valves available in?

Our corner radiator valves are available in black, light grey, anthracite, brushed brass, and white, giving you a range of finishes to coordinate with both your radiator and your room scheme. The Senator Designer range offers corner TRVs in matt black and brushed brass, crafted from solid brass with a durable powder-coated finish, making them an ideal match for our designer radiator collections.

Can corner radiator valves be used in more than one connection position?

Yes, corner valves can connect at the side of a radiator with floor piping, at the side with wall-mounted piping, and at the bottom of a radiator with wall-mounted piping, making them adaptable across a variety of installation configurations beyond just corner positions. This flexibility makes them a practical choice wherever pipework and space constraints make a standard angled or straight valve unsuitable.

Are corner radiator valves thermostatic or manual?

Our corner radiator valves are available in thermostatic versions, which automatically regulate water flow to maintain a set room temperature and reduce energy waste without any manual adjustment, making them the recommended choice for most rooms. Manual corner valves are also available for installations where temperature is already managed centrally by a room thermostat or smart heating system.

How do I know if a corner valve is right for my installation?

If your radiator sits in a position where straight or angled valves would protrude awkwardly or cannot be fitted cleanly due to space constraints, a corner valve is almost certainly the right solution. Our dedicated which radiator valve do I need guide walks you through every variable to help you confirm the correct valve type for your specific installation before purchasing.
